Low-Rise Platform lift for public access up to 1m

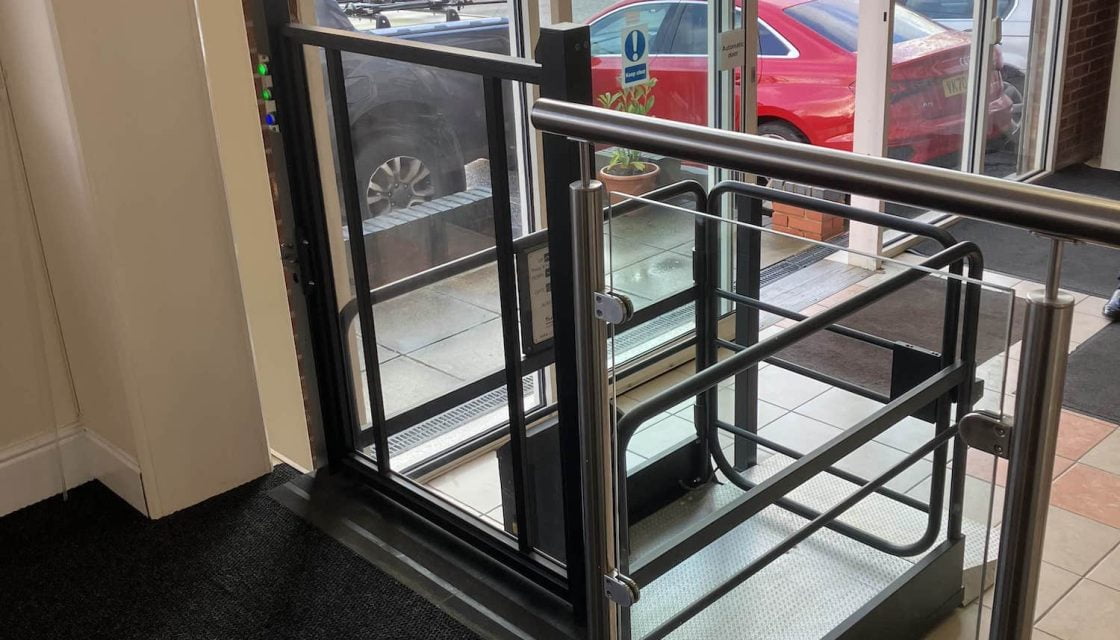

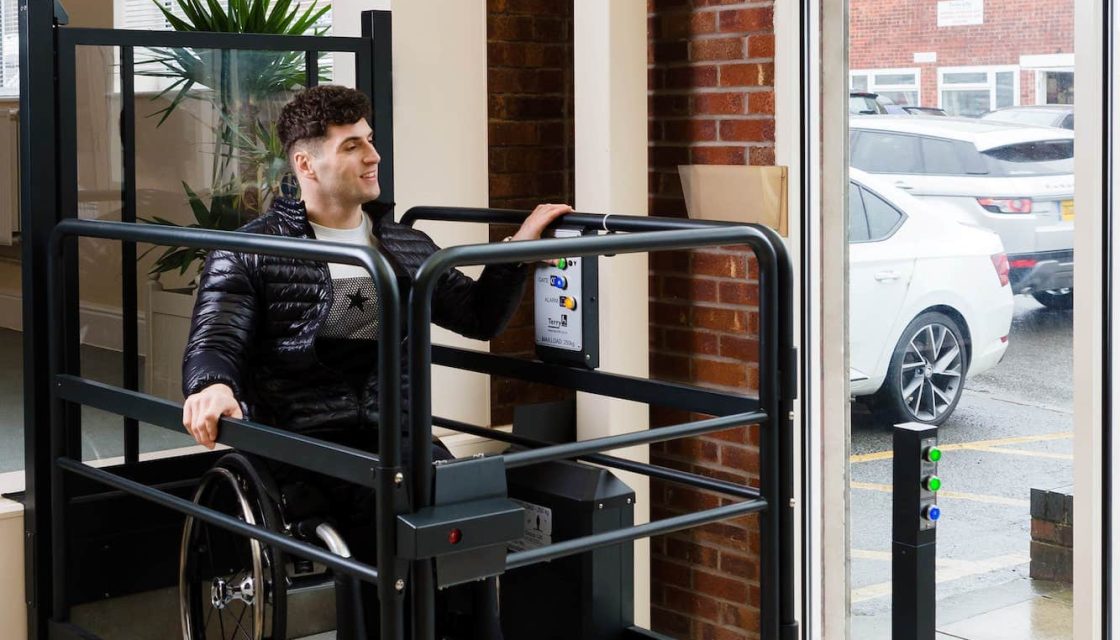

The Dalby Low-Rise Platform Lift offers a reliable and compact solution for both wheelchair and ambulant users alike. With the option to install both internally and externally, the lift provides a more convenient and practical alternative to installing a ramp. The design incorporates an external fixed ramp to eliminate the need for a pit, keeping building work to a minimum. In public buildings, the Low-Rise platform lift provides a convenient and cost-effective route to compliance with BS6440:2011 and the machinery directive to cover all current disability access regulations.

Specifications

Specifications

  • Safe working Load: 250Kg
  • Travel: 1000mm (max)
  • Lifting mechanism: Hydraulic scissor
  • Rated speed: 0.06 m/s
  • Electrical Supply: Single phase 220/240V – 50/60 Hz
  • Low voltage operating system: 24 VDC giving the lift a full battery back up to enable lift use in the event of a power failure
  • Operating temperature range: -10˚C to +40˚C
  • Safety: Full platform safe edge which stops the lift should it touch any obstacle in the down direction only. Fully interlocked carriage gate and upper gate (if required). Bellows style skirt prevents access to lifting mechanism.

Options

  • Internal or External Application
  • 900mm wide platform
  • Pit option for internal applications
  • Polycarbonate handrail infills
