Model Vertical Lifting Platform
for disabled access
Travel < 9000mm
No of stops Up to 6
Rated Load 400 kg
Platform Size 1400mm x 1000mm
1400mm x 1100mm
Pit depth 50mm or 50mm Ramp
Electrical
Requirements		 1 phase 240V 20A or
3 phase 415V 10A
Lifting
Mechanism		 Self sustaining nut and
screw drive mechanism
Soft start/stop
Automatic lubrication

Door Options
  • Full door with large glazed panel
  • Half door for top landing if required
  • 1 hour fire rated door certified to
    BS EN1634-1:2000

Other Options
  • Powered Doors
  • Powered Emergency Lowering
  • Rear Cladding Panels
  • Glazing Panels
  • Extended top enclosure height
  • Special Colour (RAL colour Range)
  • Split mast option for installation access
  • Autodialler (Emergency Telephone)
  • Voice Annunciation on Platform
  • Visual Annunciation
  • Induction Loop
  • Key Operated Door Call Points

Conformities
  • ISO 9386-1
  • Building Regs 2000 - Part M
  • CE marked EMC

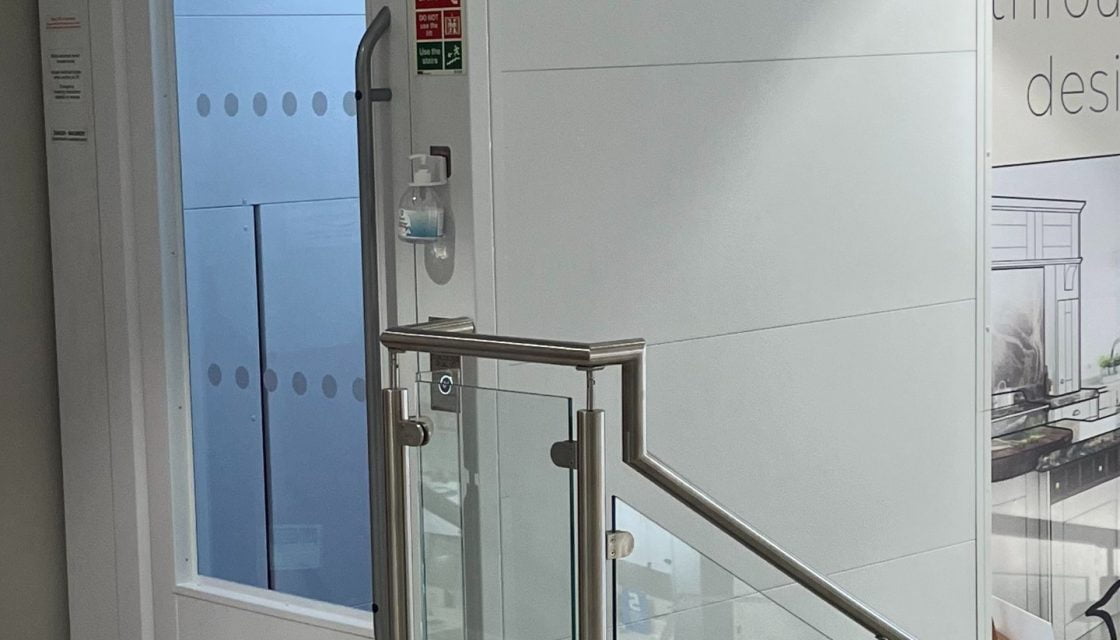

Vertical Lifting Platform
Lift
PDF Download high resolution PDF (389kb)

For more detailed information or to arrange a site visit please contact us.
